SVP Volunteer Series Hand Held Siren & Lighting Controller

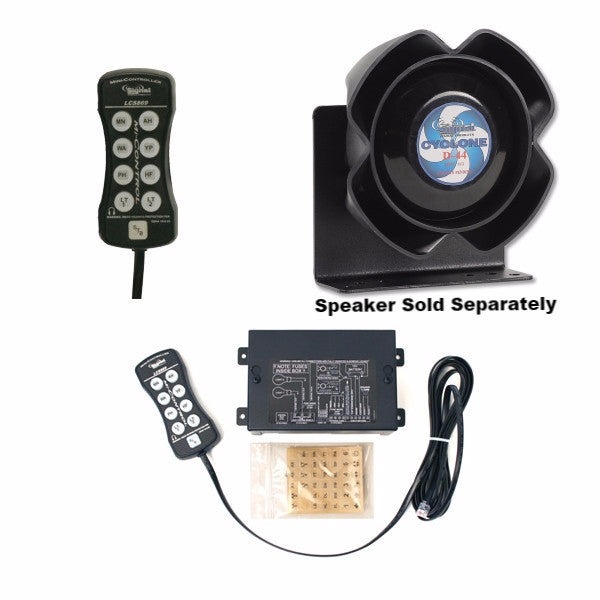

SVP LCS869 Hand Held Siren & Lighting Controller and D44 Slim Cyclone Speaker Combo
SVP SS867 Hand Held Siren and D44 Slim Cyclone Speaker Combo
SVP LCS869 Hand Held Siren & Lighting Controller and SVP SS867 Hand Held Siren
Features
- 4 Air Horn tones
- 22 siren tones including simulated mechanical and manual wail
- Auxiliary horn input (Positive or negative input)
- "Hands free" 3 tone cycle (tone 1, tone 2, tone 3, off)
- Programmable Air horn tones only mode (locks out siren tones)
- Over voltage, under voltage, speaker short protection, and visual feed back.
- 49 changeable button labels.
- All buttons back lit by green off/red on LEDs
- Dimmable button light intensity
- Audio button pressed feedback (Adjustable volume)
- All Off/Standby button
SVP LCS869 Hand Held Siren & Lighting Controller ONLY
- Lighting features (LCS869 only)
- 4 functionality options: 8 second timer (aka gun lock), momentary,
- normally closed, or standard (push on/push off)
- Two outputs, max 30 amps per output and total for system
Specifications
- Weight: 2.25lbs
- Voltage: 10-16vdc
- Current: 8 amps audio
- Lighting: 30A Max
- Amp: 5.75" x 3.75" x 2.0"
- Control Head: 4.5" x 2" x 0.75"
- Exceeds Acoustical requirements of SAE J1849 & California Title 13 when used with SVP drivers.

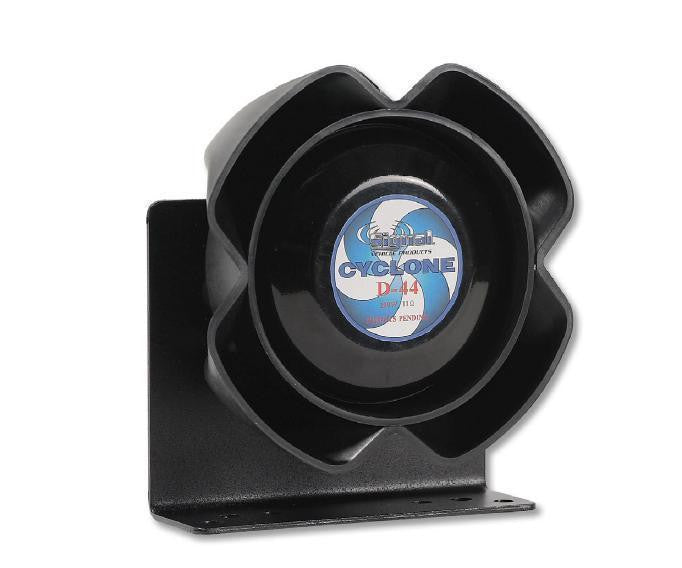

D44 Slim Cyclone Speaker
Features
- Patent Pending Cyclonic Expansion chambers
- Ultra Compact Design – Less than 3” deep
- Rugged glass filled nylon housing – will not rust!
- User Replaceable rear facing driver
- 6 Custom fit brackets available
Specifications
Approvals
- Exceeds Acoustical Requirements: SAEJ1859 & Title 13 Class A
